| Parameter | Specification |
|---|
| Max Sewing Speed | 2800 rpm |
| Sewing Head | JYL Original Head |
| Needle Type | DPx17 |
| Stitch Length | 0.05–12.7 mm |
| Max Pocket Size | 280x280 mm |
| Voltage | 220V–240V |
| Air Pressure | 0.5 Mpa |
| Control System | AC Servo Motor for Main & X/Y axis |
| Dimensions (LxWxH) | 2300 x 1500 x 1450 mm |
Advantages
High-Speed Production: With a maximum sewing speed of 2800 rpm, the Automatic Pocket Drill delivers rapid stitching without compromising quality.
Precision Stitching: Equipped with DPx17 needles and adjustable stitch lengths from 0.05–12.7mm, it guarantees perfect stitch accuracy.
Large Panel Capability: Specifically designed as a Large Panel Drilling Machine, it can handle wide panels with minimal manual intervention.
Reliable Automation: Controlled by AC servo motors for both main and X/Y axes, ensuring stable and accurate operation.
Versatile Panel Processing: Ideal for furniture panels, wardrobe doors, kitchen cabinets, and other industrial panel applications.
Applications
The Automatic Pocket Setter is suitable for:
Furniture Panel Manufacturing
Cabinet Door Production
Wardrobe and Kitchen Cabinet Assembly
Upholstery and Textile Panel Processing
Industrial Panel Processing Machine Workflows
FAQ – Automatic Pocket Setter / Large Panel Pocket Setter
1. What is an Automatic Pocket Setter?

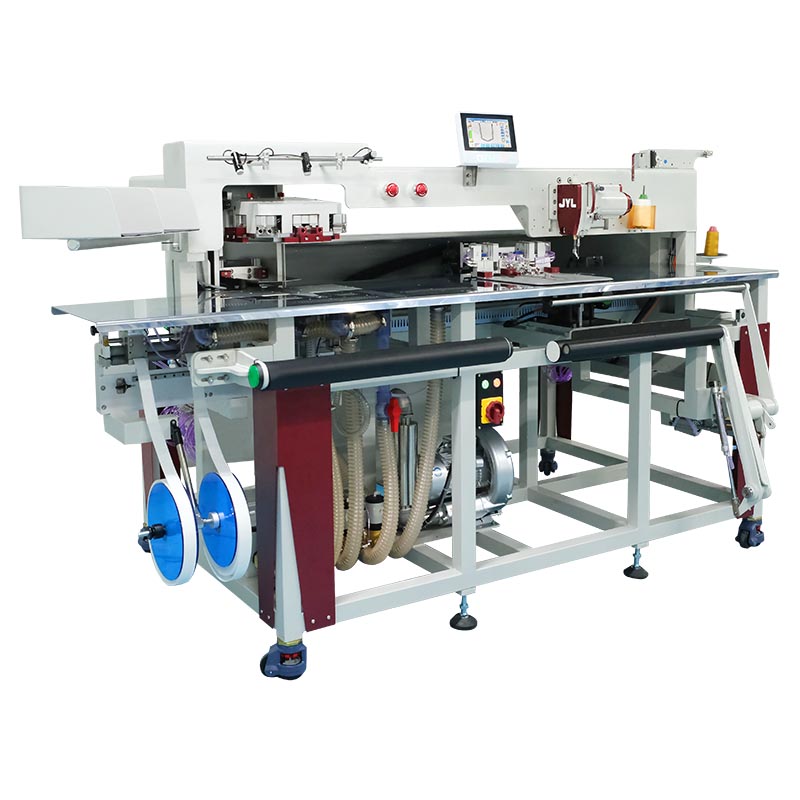

The Automatic Pocket Setter is a high-precision industrial sewing machine designed for setting pockets on large panels automatically. It ensures accurate positioning and consistent stitch quality for furniture, cabinetry, and textile applications.
2. What types of panels can it handle?
This Large Panel Pocket Setter supports panels up to 280x280mm, including cabinet doors, wardrobe panels, and upholstery sections. Its CNC Pocket Setter technology allows precise alignment even on large or heavy panels.
3. Can it handle different pocket shapes?
Yes, the machine supports both oval and box-shaped pockets. Optional features like bartack reinforcement further enhance pocket durability.
4. How fast can it operate?
The Automatic Pocket Drill function allows a maximum sewing speed of 2800 rpm, ensuring rapid production without compromising stitch accuracy.
5. How long does it take to change jigs?
The quick jig changing mechanism allows replacements in just 1–1.5 minutes, minimizing downtime and improving efficiency in panel processing workflows.
6. What safety or maintenance features does it have?
Thread breakage detector for uninterrupted operation
Needle cooling system to prevent overheating
Controlled by AC servo motors for precise movement on main and X/Y axes
7. What industries benefit from this machine?
The Large Panel Drilling Machine is ideal for:
Furniture manufacturing
Kitchen and wardrobe cabinet production
Upholstery workshops
Any panel processing facility requiring high-speed, accurate pocket setting
8. What are the power requirements?
The machine operates at 220V–240V with an air pressure of 0.5 Mpa, suitable for standard industrial environments.
